TIE BOSS Pulley
Sale price
Price
$12.99
Regular price
$0.00
Unit price
/ per
NOTE: For all International and large quantity sales please call 1-877-900-BOSS (2677).
Product Specification
- Maximum load limit: 300 lbs or 136 kgs
- Order 3/8” Tie Boss to use with pulleys
- Can use multiple pulleys, total weight must not exceed 300 lbs
- Each pulley provides approximately 30% mechanical advantage
- 150 lbs feels like 50 lbs with 2 pulleys
Hang your game
Lift and store your Jeep top
Hoist and position trailer hitch
Simply attach hooks and pull rope to lift or tie down almost any load!
Always evaluate workload and inspect Tie Boss and rope before using.
Read Warnings and Warranty information before using.
Never use Tie Boss to hold human weight.
Remember a workload secured with Tie Boss Tie Down will only be as strong as Tie Boss Tie Down load limits and to what the hooks are attached.
Inspecting and Replacing Rope
Rope will stretch and degrade with time and use. Use Tie Boss supplied rope or Tie Boss approved rope ONLY. All ropes are not made the same way and can stretch, fray or break differently. Tie Boss guarantees performance only with Tie Boss approved rope. Always test a new rope to ensure that Tie Boss Tie Down teeth engage rope and holds without slipping.
Tie Boss Recommends tying a double half hitch under lock tab for extra security during transit or storage.
Always evaluate workload and inspect the Tie Boss and rope before each use. Read enclosed instructions completely before using your Tie Boss. Failure to read these warnings can result in serious personal injury and /or property damage. Failure to observe the enclosed product instructions and warnings may void Limited Warranty.
- Do not use if damaged
- Do not exceed load limits of Tie Boss Tie Down or rope
- Avoid sharp edges, pinch points, abrasive or hot surfaces
- Secure items as tightly as possible during transit - shifting loads may exceed working load limit of Tie Boss
- Inspect tie-down after 10 miles and every 50 miles thereafter
- Never hoist items over persons or animals
- Never use a Tie Boss Tie Down to hold human weight
Insert head hook into hole at hooded top of Tie Boss as illustrated above.
Inspecting and Replacing Rope
Rope will stretch and degrade with time and use. Use Tie Boss supplied rope or Tie Boss approved rope ONLY. All ropes are not made the same way and can stretch, fray or break differently. Tie Boss guarantees performance only with Tie Boss approved rope. Always test a new rope to ensure that Tie Boss Tie Down teeth engage rope and that it holds without slipping.
Thread rope through eye of tail hook and secure with a nonslipping knot in the rope BELOW THE TAIL HOOK. TAIL HOOK SHOULD SLIDE FREELY ON ROPE ABOVE KNOT. See Tie Non-Slipping Knot instructions.
Lifting Loads with Tie Boss *
- Attach head hook to sturdy location (separate from load). Select locations that will support weight when lifted. Remember a workload secured with Tie Boss Tie Down will only be as strong as to what the hooks are attached.
- Attach tail hook to a sturdy area of load.
- TO SET: Pull free rope until desired tension is obtained. Hold tension and lower rope into teeth to automatically lock rope in place. Tie Boss recommends tying a double half hitch under lock tab for extra security Lduring transit or storage.
- TO LOCK: Always secure rope by locking it under LOCK Tab
- TO RELEASE: Ensure that you are strong enough to support the released workload, that release will not result in a dangerous shift in load and that area below a lifted item is clear. Remove rope from under LOCK Tab. Grip rope and pull with more tension / weight than load and lift it out of teeth at a 45 degree angle, lower/release load by allowing rope to pass through Tie Boss Tie Down.
- When releasing large loads, belay/wrap pull rope around fixed object to control load.

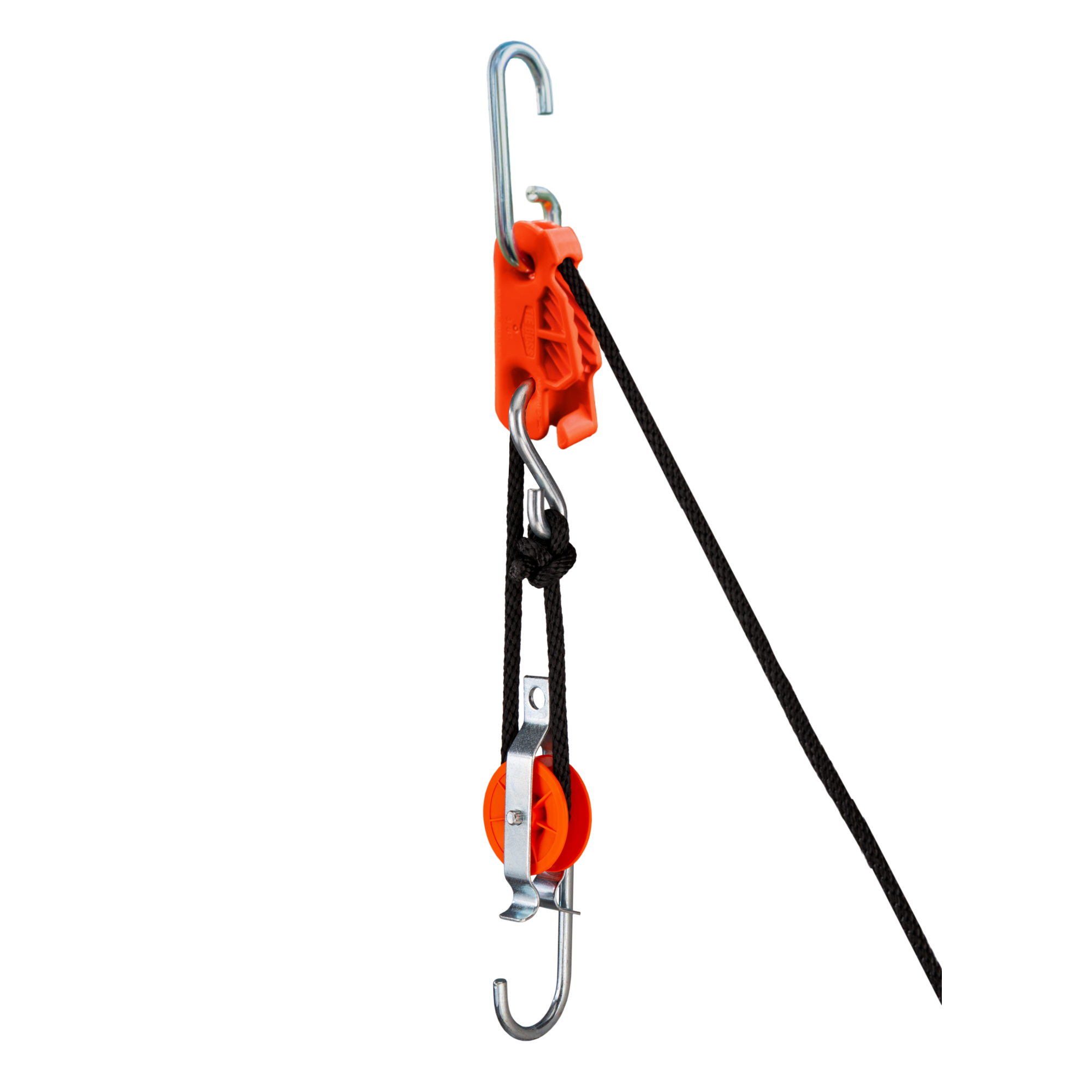

* To Lift Loads Easier add Tie Boss Pulleys
Adding 1 pulley provides a 2 to 1 mechanical advantage (i.e. 100 lbs. feels like 50 lbs). Adding 2 pulleys provides a 3 to 1 mechanical advantage (i.e. 150 lbs. feels like 50 lbs).
- Install Hooks and Rope (see Diagrams 1-3 as shown earlier)
- Ensure rope is long enough. One pulley setup requires rope length = 3 times distance lifted
- Attach head hook to secure location, allowing rope to hang freely (see Diagram 5, A)
- Insert tail hook into hole at open end of Tie Boss Tie Down body (closest to LOCK tab), adjusting tension to form a long hanging loop (see Diagram 5, B)
- With pull rope in locked position, drop pulley onto hanging loop (see Diagram 5, C)
- Pull down on pulley hook, ensuring rope rests into groove of pulley wheel
- Attach weight or item to be lifted onto pulley hook (see Diagram 5, D)
"The Tie Boss Block and Tackle is simple to use and turns a two-man job into a one-man job. It worked great for getting my buck hoisted up the meat pole."
Larry Russell, Attica, MI
- Select Tie Boss based on weight of load and length of rope
1/4" Tie Boss - supports up to 150 lbs (68 kgs) /8 ft rope
3/8" Tie Boss - supports up to 300 lbs (136kgs) / 10 ft rope
Tie Boss Block and Tackle - supports up to 300 lbs (136 kgs) / 35 ft rope / 2 pulleys
Tie Boss Pulley - supports 300 lbs. (136kgs) Use with 3/8" Tie Boss - Order the right quantity of each
Tie Down ATV - order (4) 3/8" Tie Boss
Hang Bike in Garage - order (2) 3/8" Tie Boss
Transport Canoe or Kayak - order (2) 3/8" for Rack Mount, add (2) additional 3/8" for front and back
RV / Tent Awning - order (2) 1/4" Tie Boss for each window / awning - Add Tie Boss Pulleys to lift your load easier
1 pulley provides 2:1 mechanical advantage
2 pulleys provide 3:1 mechanical advantage
150 lb feels like 50 with 2 pulleys
Order 3/8” Tie Boss to use with pulleys
Can use multiple pulleys, total weight must not exceed 300 lbs. (136 kgs) - Order extra Tie Boss for friends and family – makes a great gift!
Satisfaction Guaranteed
If you are not 100% satisfied with your Tie Boss product, Tie Boss will replace the product or refund your purchase price. Please call to 1-877-900-BOSS (2677) for more directions.
Privacy Policy
Tie Boss will not provide any information collected during the regular course of this site's business to third parties. Information we do collect will be used for the expressed purpose of carrying out the transaction for which it was given or for the occasional e-mail notifications of information on products, promotions, etc. If you wish to no longer receive such emails please reply with subject line REMOVE and you will be removed.
Harmony Tie Boss LLC. warrants the body of this product (not the rope) against defects in materials or workmanship that effect product performance for the lifetime of the product from the date of the original purchase. If the body (not the rope or hook) is defective, TIE BOSS will replace the entire product at no cost. Product of current design may be substituted for the original product purchased. The replacement body (not the rope) is warranted for the balance of the existing warranty. At its option, TIE BOSS may elect to refund the product’s original purchase price if replacement is not practicable.
WARRANTY CONDITIONS
THIS LIMITED WARRANTY SET FORTH BY TIE BOSS IN THIS DOCUMENT, EFFECTIVE AUGUST 12, 2020, IS THE ONLY EXPRESS WARRANTY APPLICABLE TO THIS PRODUCT. NO ONE IS AUTHORIZED TO MODIFY OR EXPAND THIS LIMITED WARRANTY. THE ABSOLUTE LIMIT OF TIE BEST’S LIABILITY IS THE ORIGINAL PURCHASE PRICE OF THE PRODUCT. THERE IS NO OTHER EXPRESS WARRANTY. ANY IMPLIED WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF THE EXPRESS WARRANTY PROVIDED HEREIN. THIS LIMITED WARRANTY IS THE PURCHASER’S EXCLUSIVE REMEDY, AND LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES UNDER ANY AND ALL WARRANTIES IS EXCLUDED TO THE EXTENT PERMITTED BY LAW.
Some states/provinces do not allow limitations on how long an implied warranty lasts, so the above information many not apply to you. Some states/provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion may not apply to you. The warranty gives you specific legal rights, and you may also have other rights, which vary from state to state or province to province.
This limited warranty applies to the original customer of products purchased in the United States and Canada. The warrantor is Harmony Tie Boss LLC. An Ohio Corporation.
EXCLUSIONS
The Product’s rope is excluded from this limited warranty. In addition, this warranty does not cover damage from: accident, improper handling (including, but not limited to, damage from use in a corrosive environment or proximity to corrosive materials), usage under extreme conditions which exceed recommended performance specifications, alteration or misuse, vandalism, theft or any other cause beyond TIE BOSS’s control. TIE BOSS is not responsible for damage from failure to follow the manufacturer's instructions. Minor imperfections which do not impair the functioning of the Product are not considered defects and are excluded from coverage.
CLAIMS PROCEDURE
Be sure to file claims within the warranty coverage period.
Provide information verifying date of purchase.
If you are not 100% satisfied with your Tie Boss product, Tie Boss will replace the product or refund your purchase price. Please call to 1-877-900-BOSS (2677) for more directions.
Always evaluate workload and inspect TIE BOSS and rope before each use. Read enclosed instructions completely before using your TIE BOSS. Failure to read these warnings can result in serious personal injury and /or property damage. Failure to observe the enclosed product instructions and warnings may void Limited Warranty.
- Do not use if damaged
- Do not exceed load limits of TIE BOSS® Tie Down or rope
- Avoid sharp edges, pinch points, abrasive or hot surfaces
- Secure items as tightly as possible during transit - shifting loads may exceed working load limit of TIE BOSS®
- Inspect tie-down after 10 miles and every 50 miles thereafter
- Never hoist items over persons or animals
- Never use TIE BOSS® Tie Down to hold human weight
